BA method, simple synthetic images

For simple synthetic images:

I0 =

         0    0.5000         0
         0    1.0000         0
         0    0.5000         0
    0.1000         0         0
    0.0500         0         0
    0.0500    0.1000         0

I1 =

    0.5000         0         0
    1.0000         0         0
    0.5000         0         0
         0    0.1000         0
         0    0.0500         0
         0    0.0500    0.1000

Running code by D.Sun. Disabled texture decomposition, disabled multiscale processing.

uv = estimate_flow_interface(I0, I1, 'classic-c-brightness', [], {'display', 1, 'pyramid_levels', 1, 'gnc_pyramid_levels', 1});

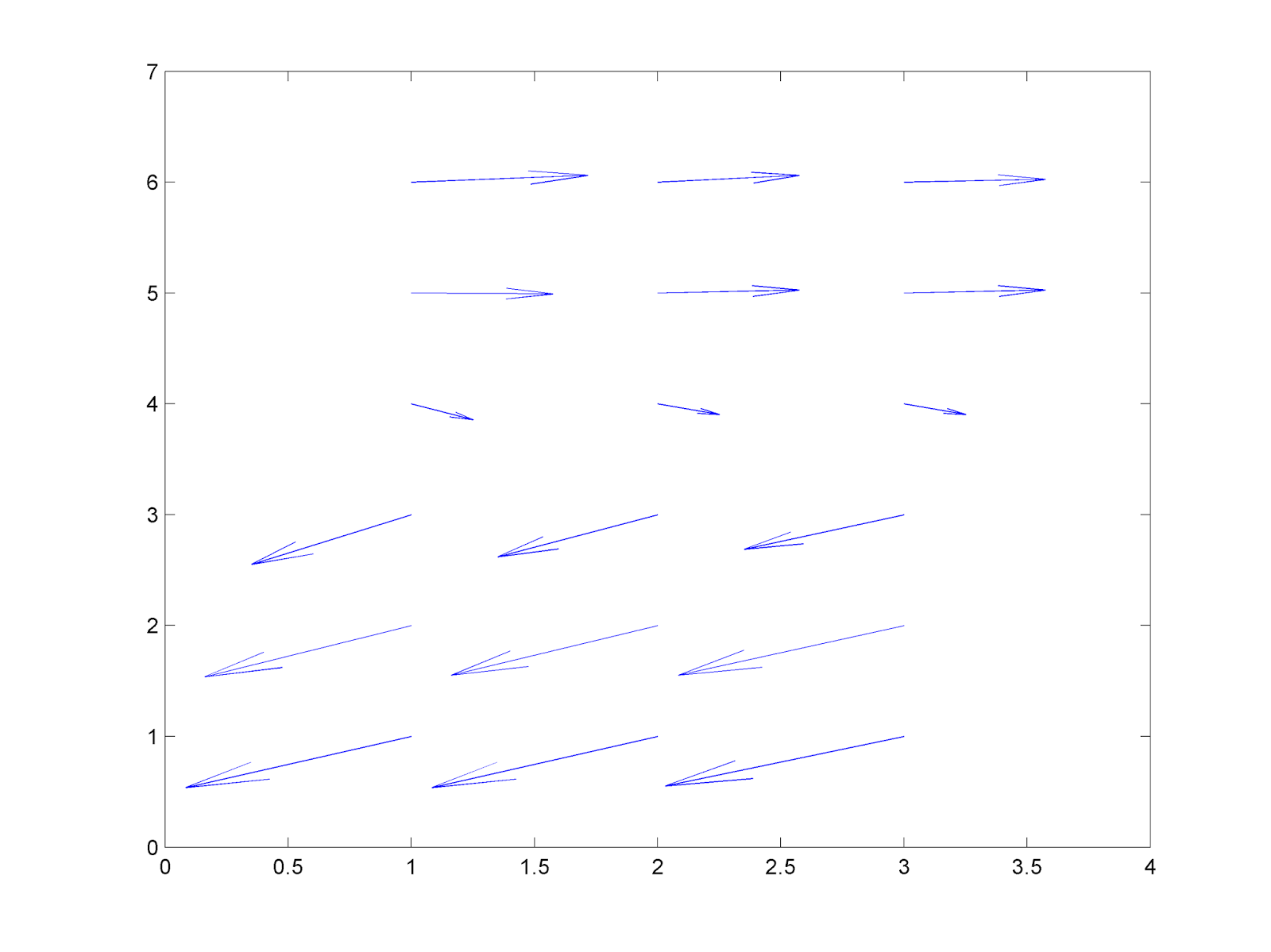

After first iteration ( loop for ignc = 1:this.gnc_iters  in dsun_ijcv_flow_code\@ba_optical_flow\compute_flow.m):

After 2nd iteration:

After 3rd iteration:

I think, it is right answer.

uv(:,:,1) =

   -0.9995   -0.9995   -0.9996
   -0.9994   -0.9994   -0.9995
   -0.9992   -0.9992   -0.9992
    0.9992    0.9992    0.9992
    0.9994    0.9994    0.9994
    0.9995    0.9994    0.9994


uv(:,:,2) =

  1.0e-003 *

   -0.2083   -0.2080   -0.2080
   -0.2080   -0.1848   -0.1848
   -0.1861   -0.1616   -0.1848
   -0.1507   -0.0860   -0.1183
   -0.0860   -0.0633   -0.1183
   -0.0396   -0.0396   -0.0860

BA method. Another pair of images

I0 =

        0    0.5000         0
        0    1.0000         0
        0    0.5000         0


I1 =

   0.5000         0         0
   1.0000         0         0
   0.5000         0         0

1st iteration

uv(:,:,1) =

        -1    -1    -1
        -1    -1    -1
        -1    -1    -1


    uv(:,:,2) =

      1.0e-014 *

        0.8281    0.8281    0.8281
        0.8281    0.8281    0.8281
        0.8281    0.8281    0.8281

2nd iteration

    uv(:,:,1) =

       -1.0000   -1.0000   -1.0000
       -1.0000   -1.0000   -1.0000
       -1.0000   -1.0000   -1.0000


    uv(:,:,2) =

      1.0e-013 *

       -0.5965   -0.5965   -0.5965
       -0.5965   -0.5965   -0.5965
       -0.5965   -0.5965   -0.5965

3rd iteration

    uv(:,:,1) =

       -1.0000   -1.0000   -1.0000
       -1.0000   -1.0000   -1.0000
       -1.0000   -1.0000   -1.0000


    uv(:,:,2) =

      1.0e-011 *

        0.5374    0.5374    0.5374
        0.5374    0.5374    0.5374
        0.5374    0.5374    0.5374

Visually the same:

HS method. Simple image

BA - is not the simpliest method. I found there is implmentation of Horn-Schunk.

I found that the results are really poor, when my “image elements” ar just on the border. So I extended image by zeros.

I use the following command:

uv = estimate_flow_interface(I0, I1, ...
    'hs-brightness', [], ...
    {'display', 1, 'pyramid_levels', 1, 'gnc_pyramid_levels', 1, ...
     'pyramid_spacing', sqrt(2)});

I also use slightly modified code. I disabled automatic pyramid height calculation, so I set it manually. Input

    I0 =

             0    0.5000         0
             0    1.0000         0
             0    0.5000         0
        1.0000         0         0
        0.5000         0         0
        0.5000    1.0000         0

    I1 =
        0.5000         0         0
        1.0000         0         0
        0.5000         0         0
             0    1.0000         0
             0    0.5000         0
             0    0.5000    1.0000

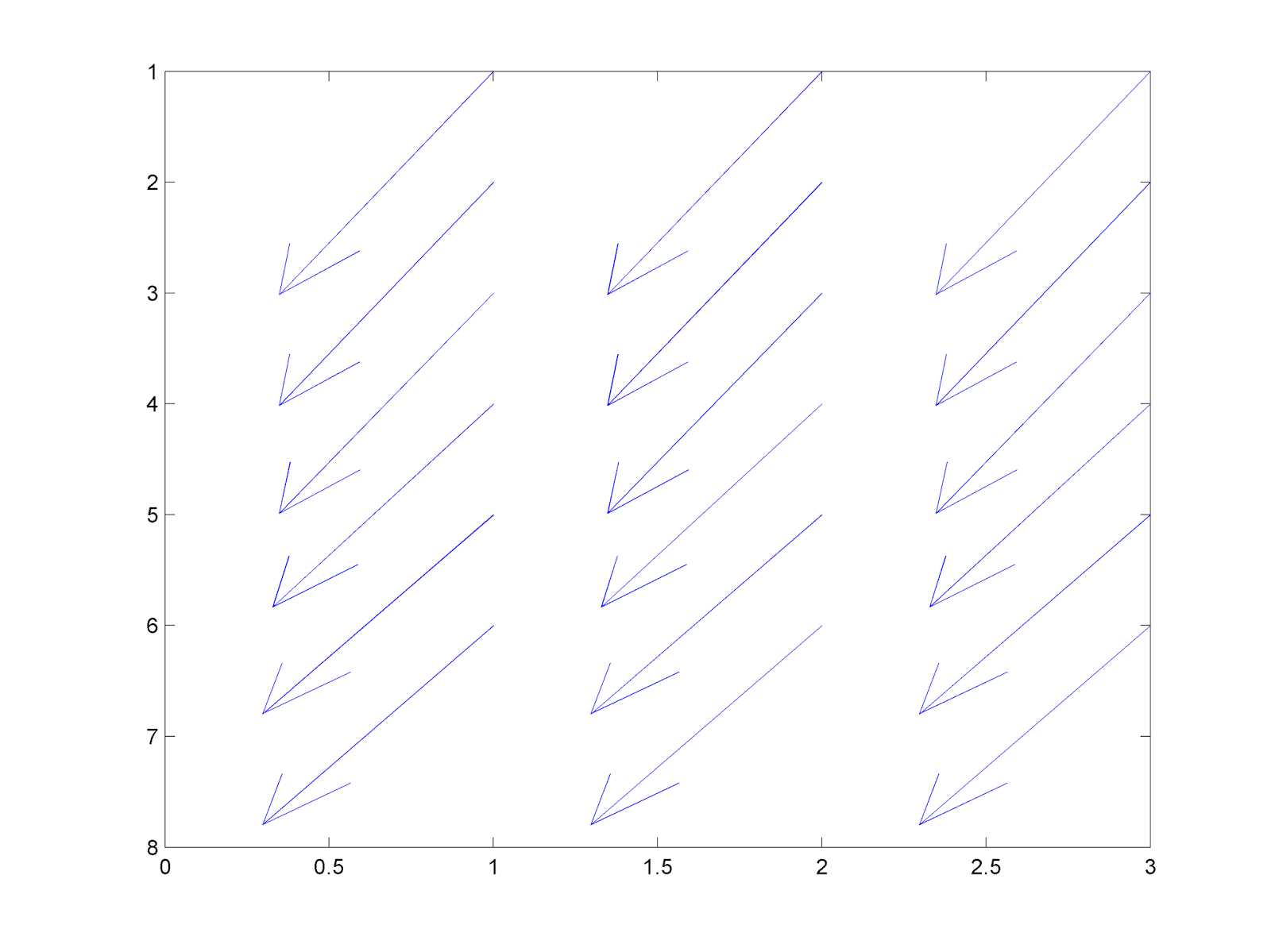

Gives:

While

    I0 =

             0         0         0         0         0
             0         0    0.5000         0         0
             0         0    1.0000         0         0
             0         0    0.5000         0         0
             0    1.0000         0         0         0
             0    0.5000         0         0         0
             0    0.5000    1.0000         0         0
             0         0         0         0         0


    I1 =

             0         0         0         0         0
             0    0.5000         0         0         0
             0    1.0000         0         0         0
             0    0.5000         0         0         0
             0         0    1.0000         0         0
             0         0    0.5000         0         0
             0         0    0.5000    1.0000         0
             0         0         0         0         0

gives

HS method. Multiscale.

   I0 = [ 0 0 0 0 0 0 0 0 0 0 0 0
          3 0 0 0 0 0 5 5 0 0 0 0
          3 0 0 0 0 0 1 3 0 0 0 0
          0 0 0 1 0 0 2 4 0 0 0 0
          0 0 0 2 0 0 0 0 0 0 0 0
          5 2 0 0 0 0 0 0 0 0 0 0
          0 0 0 0 0 0 0 0 0 0 0 0
          5 5 0 0 0 0 0 0 0 0 0 0
          5 5 0 0 0 0 0 0 0 0 0 0       ] / 5.;

   I1 = [ 0 0 0 0 0 0 0 0 0 0 0 0
          3 0 0 0 0 0 0 0 0 0 0 0
          3 0 0 0 0 0 0 0 0 0 0 0
          0 0 0 1 0 0 0 0 0 5 5 0
          0 0 0 2 0 0 0 0 0 1 3 0
          5 2 0 0 0 0 0 0 0 2 4 0
          0 0 0 0 0 0 0 0 0 0 0 0
          5 5 0 0 0 0 0 0 0 0 0 0
          5 5 0 0 0 0 0 0 0 0 0 0       ] / 5.;



Here the shift between frames is much larger than a pixel and the size of objects. So OF fail without resolution scaling.

1 pyramid level ![](http://1.bp.blogspot.com/-cKPApsEww3w/VFuA8qfEpPI/AAAAAAAACEQ/UmqX4DYVnkk/s320/HS_pyramid_1.png) 2 pyramid levels ![](http://1.bp.blogspot.com/-wC_4IzeuNAE/VFuA8-z9U8I/AAAAAAAACEU/7K_vWoiou0Q/s320/HS_pyramid_2.png) 3 pyramid levels ![](http://4.bp.blogspot.com/-ynqgbeq_-B0/VFuA8lHxFJI/AAAAAAAACEY/KR3szPexLP4/s320/HS_pyramid_3.png)
